Control Room Scheduling Automation
Next.js, TypeScript, Turso, Vercel, Raspberry Pi 5
- Ingests When-I-Work ICS feed and ESPN game data; drives 4 Raspberry Pi DAKboard displays with live per-panel crews.
- Replaced manual schedule populating and panel routing across 60+ games per season.

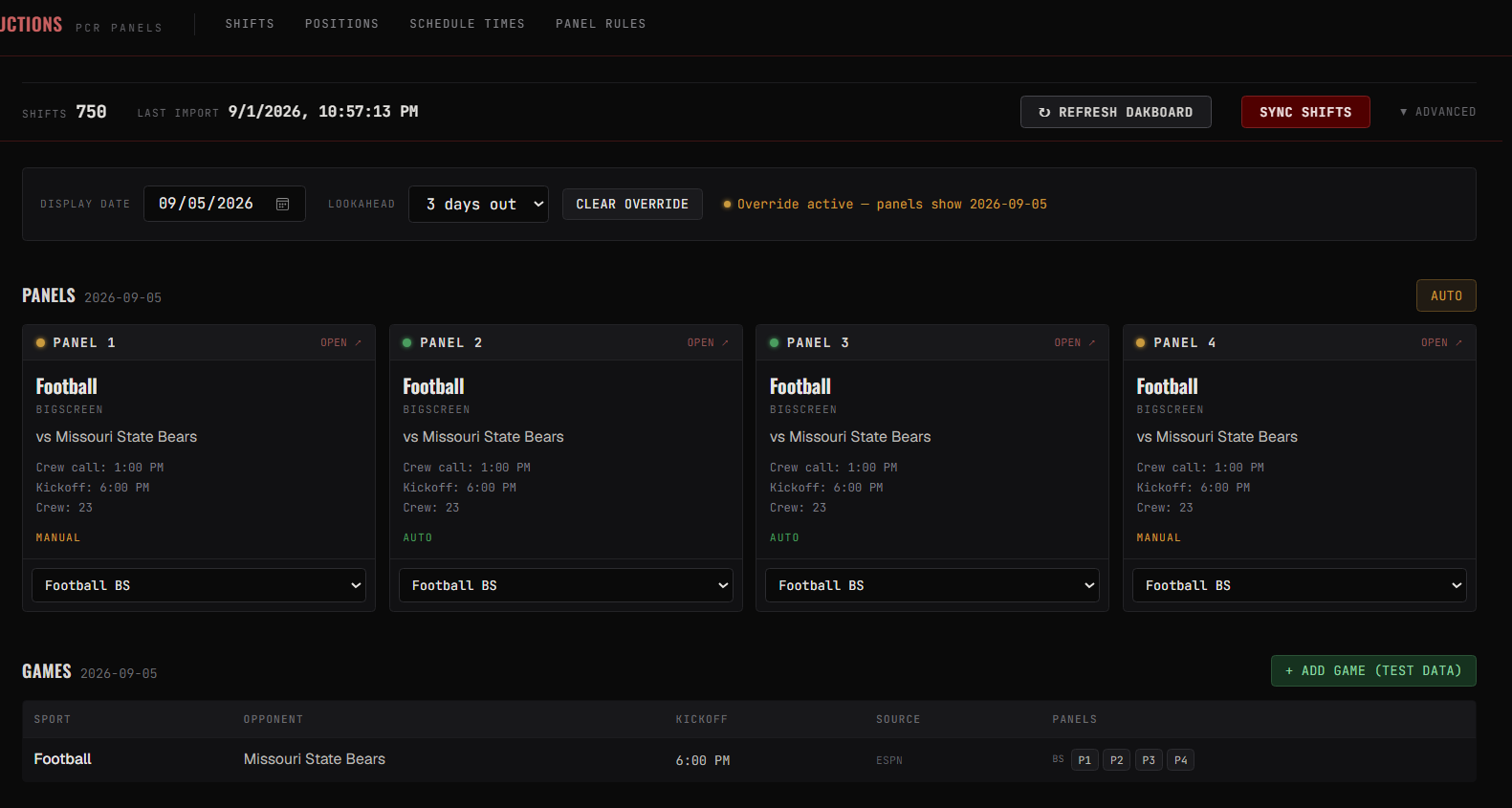

- Admin dashboard allows for live schedule overrides and crew assignment changes; all changes reflected in real-time across all displays.
Smart Garage Parking System (Senior Capstone sponsored by FLUOR)
C++, Python, LiDAR, OpenCV, FastAPI, React

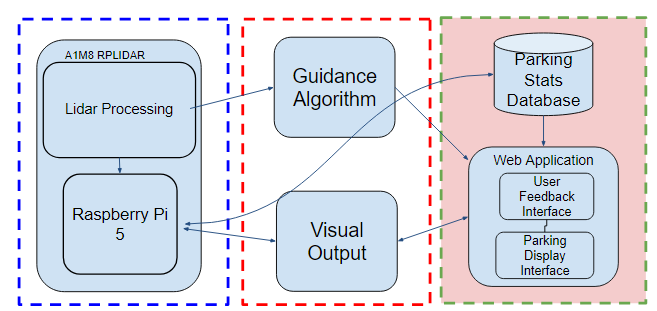

- Led development of an assisted parking system using LiDAR-based space detection, vehicle tracking, and Bezier-curve path planning to provide real-time parking guidance.

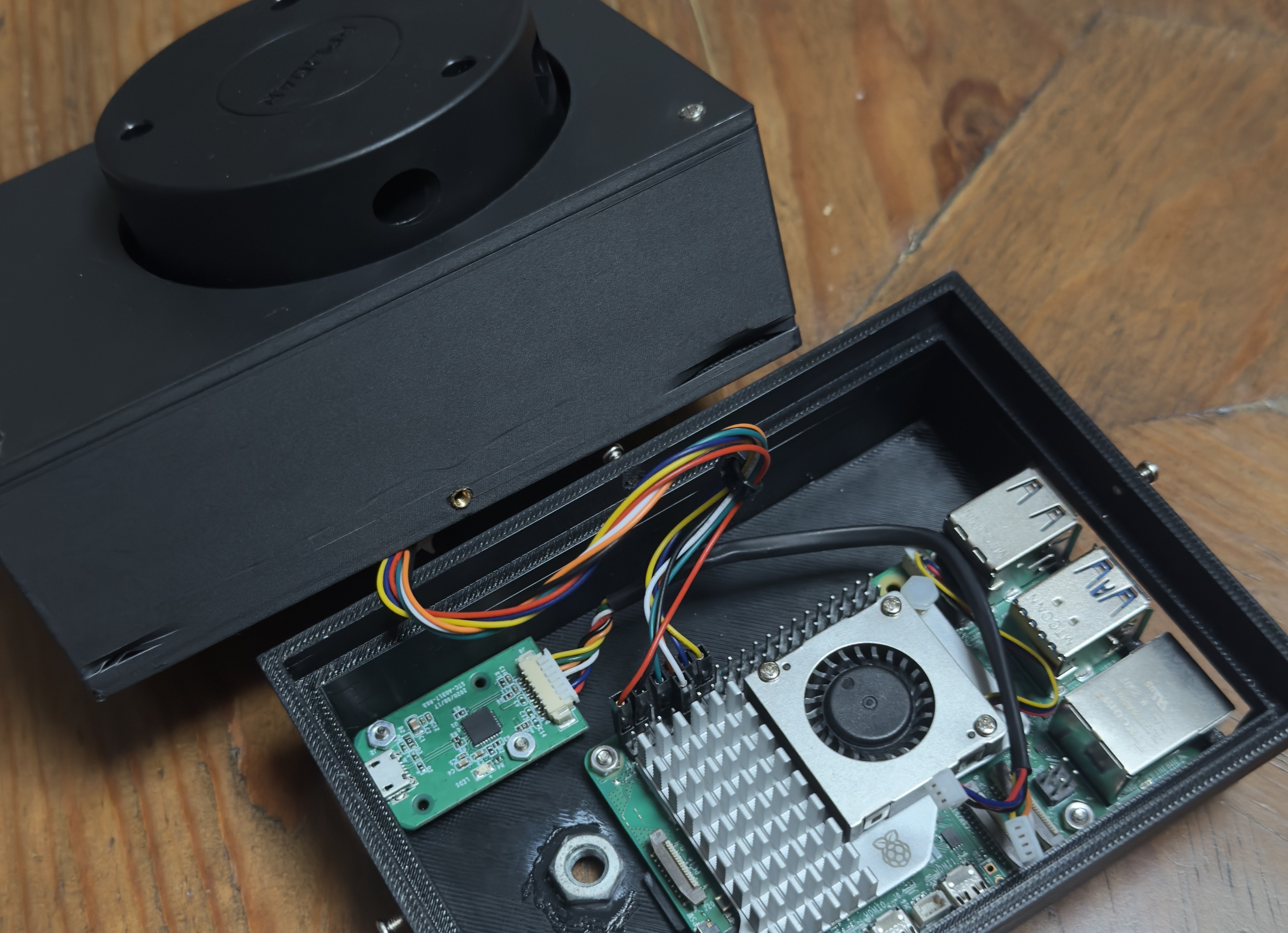

- Designed and 3D-modeled a LiDAR/Raspberry Pi housing and tripod-mounted sensing unit; implemented high-frequency LiDAR data collection with UART connectivity.

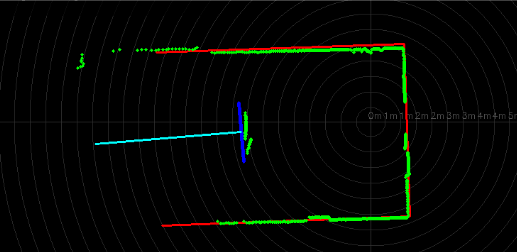

- Developed computer vision algorithms to detect and model garage walls from LiDAR point clouds and created real-time vehicle tracking using bumper point clusters.
- Integrated the system with FastAPI and React to provide a live interface for guidance feedback as the user is parking.
8-Bit Pipelined Adder
Cadence Virtuoso

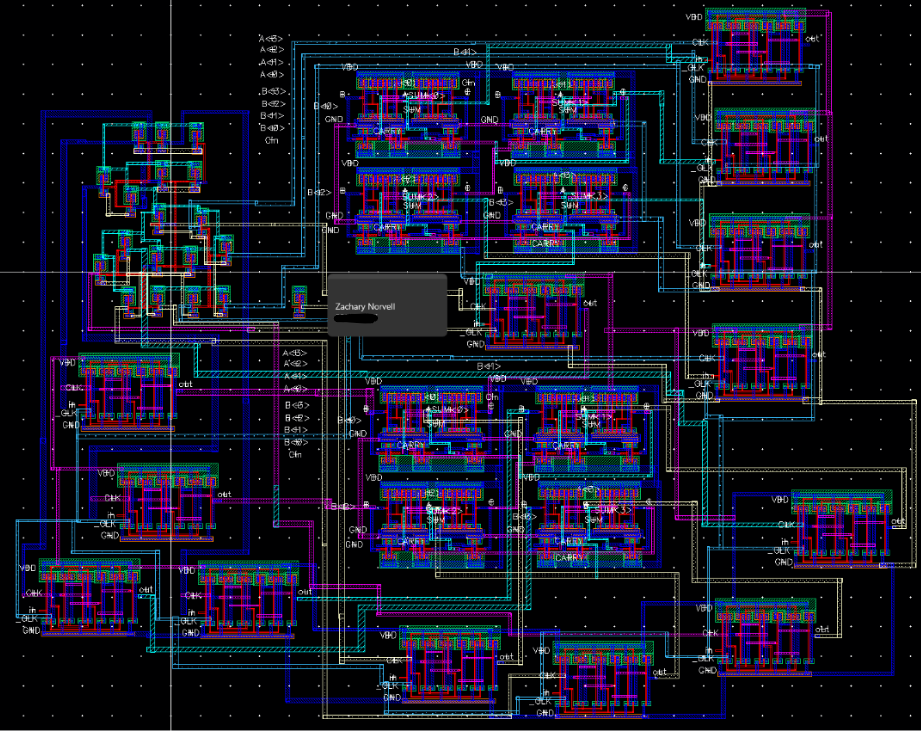

- Designed Inverter, NAND2, and XOR2 standard cells from logic schematics through transistor-level physical layouts using metal and polysilicon; verified with DRC and LVS.
- Applied a hierarchical design flow to integrate standard cells into full adders, 4-bit adders, and an 8-bit pipelined adder.
- Validated functionality and timing through hierarchical testbench simulations.
ARMv8 Single-Cycle Processor
Verilog, Linux
- Designed and implemented a single-cycle ARMv8 processor in Verilog, integrating the control unit, ALU, register file, memory, and sign extender.
- Implemented support for the ARMv8 instructions LDUR, STUR, ADD, SUB, AND, and OR.
- Developed and debugged the processor in a Linux environment using the command line and Emacs.
Salvaged Stadium LED Panel
ESP32, Wireshark

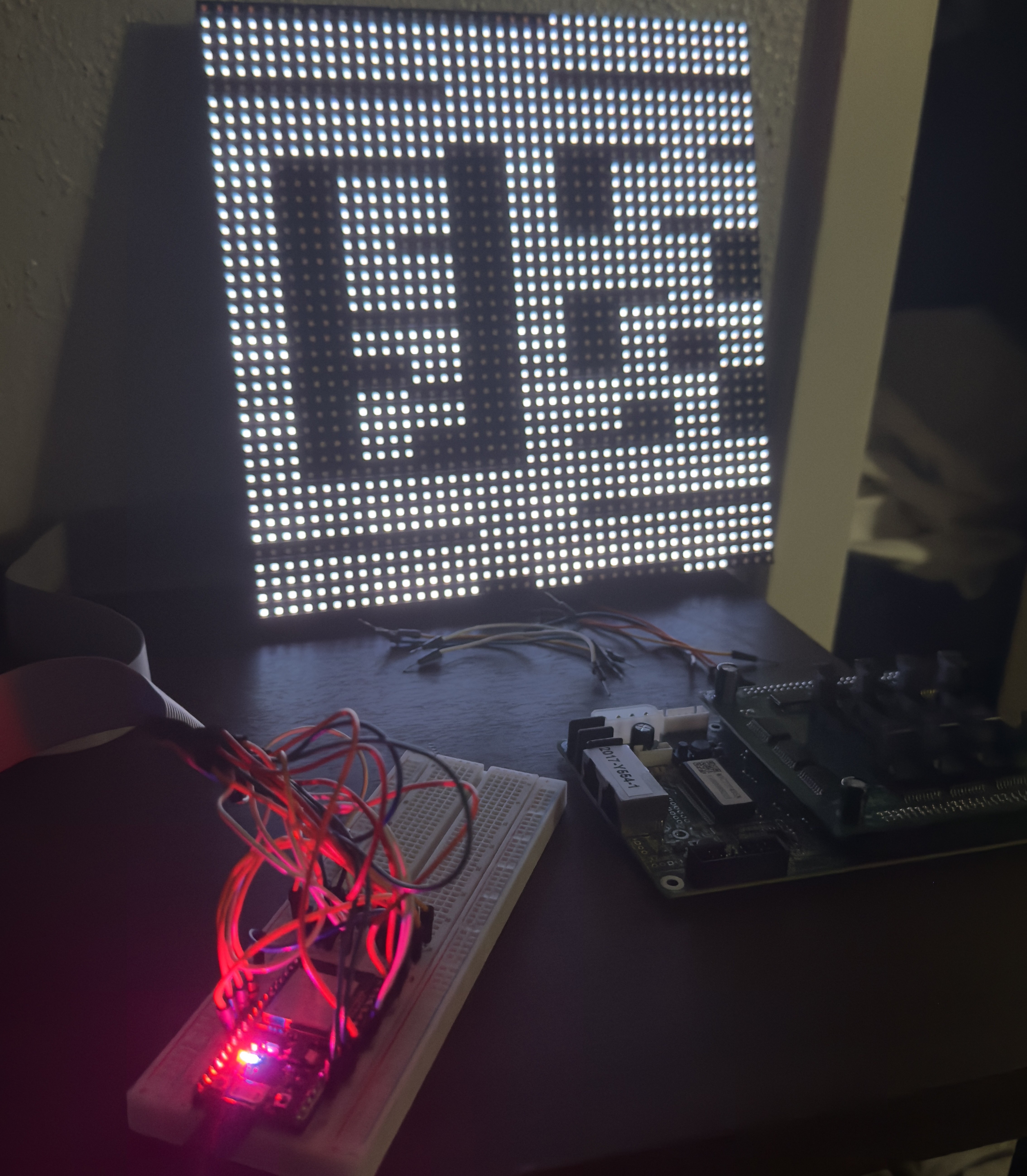

- Reverse engineered a proprietary NovaStar Ethernet control protocol using Wireshark and analyzed communication between the controller and LED receiving hardware.
- Developed an ESP32-based interface to investigate direct control of the panel's HUB interface and characterize its communication protocol.
Gym Timer IR Controller
ESP32, C++, NEC IR protocol
- Reverse-engineered a salvaged gym timer's proprietary IR command set through systematic NEC protocol analysis and command-space testing.

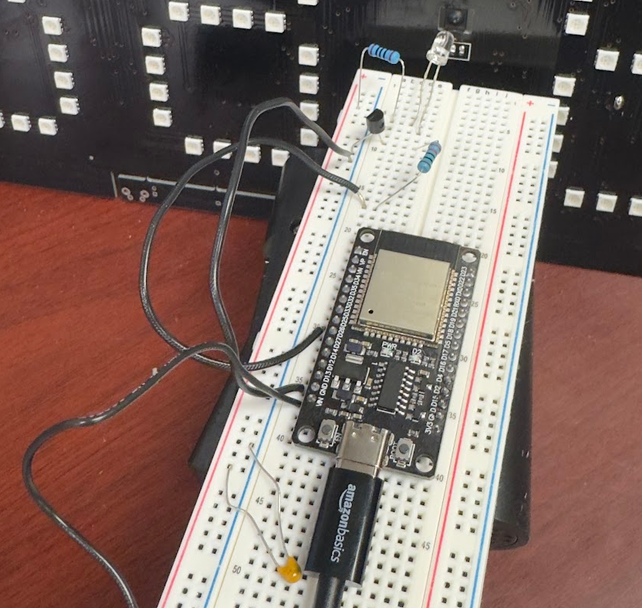

- Designed and built a discrete transistor IR driver circuit and ESP32-based Wi-Fi controller for remote timer operation.
